Audio and Visual Equipment
CD player / DVD Player
Cassette adaptor
Automotive Product
AIr conditioning Damper Actuator

Household Appliance
Electric shaver
Toothbrush
Door Lock Autuator
Precious metal-brush motor
Output : Approx 0.1W ~ 2.5W
Model Voltage Free load At Max. Efficiency Stall Torque
(g.cm)
Operating range Norminal Voltage (V) Speed (r.p.m.) Current (A) Speed (r.p.m.) Current (A) Torque (g.cm) Output (W)
QX-FF-130-2860 1.0~1.5 1.2 7400 0.21 5800 0.81 7.5 0.45 38
QX-FF-130-14230 2~8 3.0 3600 0.035 2900 0.12 6.0 0.18 36
QX-FF-130-11340 3~12 6.0 4800 0.030 3800 0.12 8.5 0.33 44
QX-FF-130-11340 3~12 9.0 7300 0.035 5900 0.15 12 0.73 67

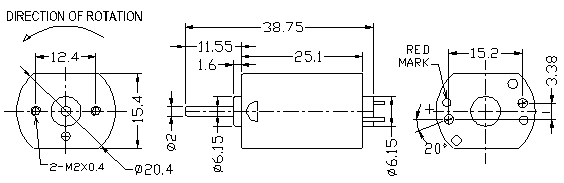

Unit: mm

Weight: 17g (Approx)

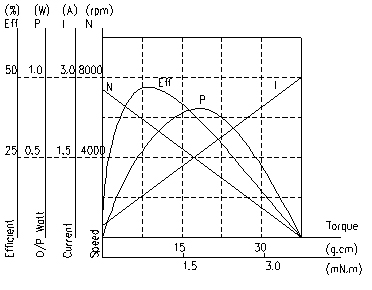

QX-FF-130-2860 1.2V
Electrical characteristic for reference only (w/ กำ15% tolerance)
